Premium MIP LED Display Solution

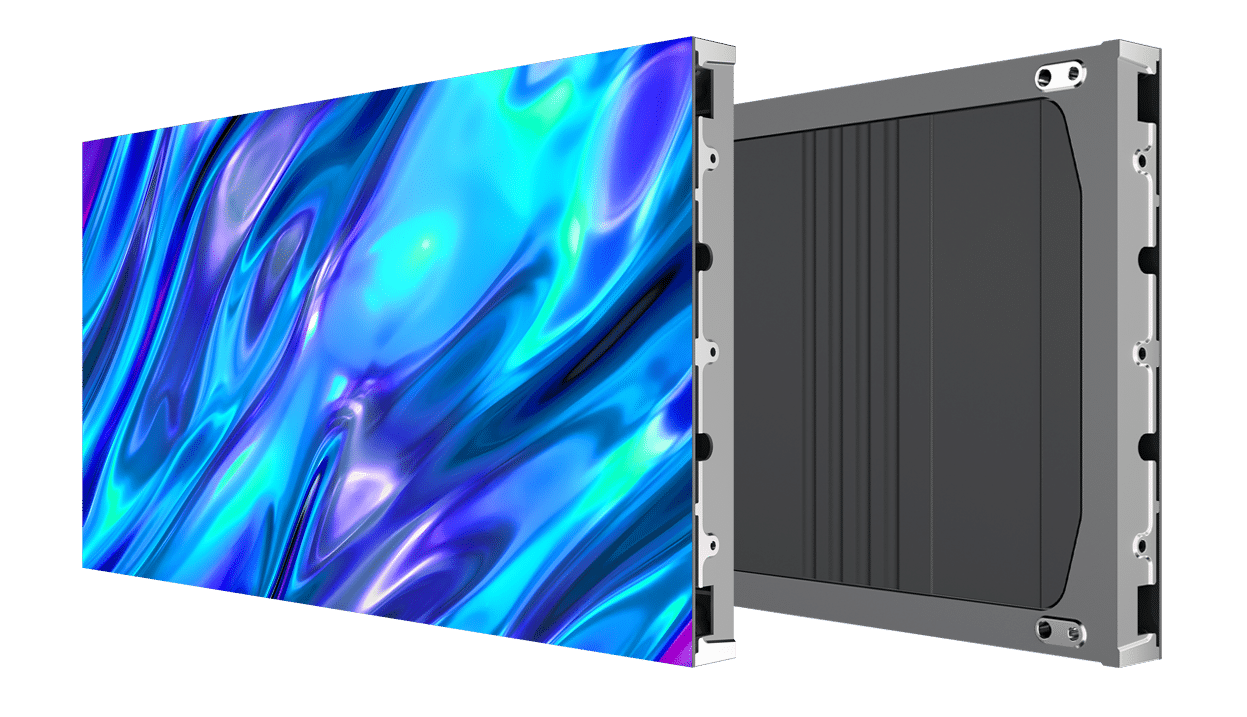

The Newline DV Premier LED Solution stands as a pinnacle of innovation and versatility in the realm of visual technology. Equipped with high-quality MIP (MicroLED In Package and MiniLED In Package) modules, it ensures exceptional brightness and color accuracy, making it ideal for a wide range of indoor applications including broadcast studios, control rooms, and conference centers.
MIP Technology
High Contrast & Color Consistency
Energy Saving
Superior Protection
Easy to Clean and Repair
Comfortable Visual Experience
MIP Technology
MIP technology comprises two paths: MicroLED In Package and MiniLED In Package. The former covers P0.3-0.7mm products, while the latter spans P0.6-1.8mm products. MIP technology employs smaller light-emitting chips, achieving enhanced narrow pixel pitch display. Paired with flip chip and common cathode technologies, it effectively boosts product stability and reduces energy consumption. Special black coating on the surface of the LED screen improves color and black uniformity, while providing features of low glare, low reflection, and minimal Moiré patterns.
High Contrast & Color Consistency
Thanks to black coating technology within MIP, the DV Premier effortlessly achieves a high contrast ratio of 10,000:1. This facilitates distinct and intricate levels between bright and dark display areas, enhancing visual depth and clarity. Combined with support for a 110% NTSC color gamut, the result is a lifelike visual experience that captivates the audience with vibrant and true-to-life colors.
Superior Protection
With the backing of a superior protection system, the DV Premier stands out in diverse and challenging environments, boasting exceptional features including dustproof, moisture resistance, anti-collision, anti-static, and blue light filtering capabilities. Tailored for environments susceptible to dirt and complexity, such as subway interior tracks, it showcases remarkable product reliability, substantially prolonging the product’s lifespan while ensuring consistent performance in demanding conditions.
Ultra-Low Power
The DV Premier incorporates common cathode and flip chip technologies, along with an energy-saving driver chip, resulting in a significant decrease of 34% in power consumption.
Specifications
| Pixel Pitch | 0.625 mm | 0.9375 mm | 1.25 mm | 1.5625 mm |
| LED Type | MIP | MIP | MIP | MIP |
| Pixel Density | 2,560,000 dots/m2 | 1,137,777 dots/m2 | 640,000 dots/m2 | 409,600 dots/m2 |
| Cabinet Size (W x H x D) | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. |
| Cabinet Resolution | 960 (W) x 270 (H) | 640 (W) x 360 (H) | 480 (W) x 270 (H) | 384 (W) x 216 (H) |
| Cabinet Weight | 11.46 lbs. | 11.46 lbs. | 11.46 lbs. | 11.46 lbs. |
| Calibrated Brightness (nits) | 600 nits | 1000 nits | 1000 nits | 1000 nits |
| Viewing Angle | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 |
| Refresh Rate (Hz) | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Contrast Ratio | 10,000:1 | 12,000:1 | 12,000:1 | 12,000:1 |
| Input Voltage | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz |
| Maximum Power | 70 W/Cabinet; 346 W/m2 | 120 W/Cabinet; 592 W/m2 | 120 W/Cabinet; 592 W/m2 | 120 W/Cabinet; 592 W/m2 |
| Average Power | 25 W/Cabinet; 123 W/m2 | 42 W/Cabinet; 207 W/m2 | 42 W/Cabinet; 207 W/m2 | 42 W/Cabinet; 207 W/m2 |
