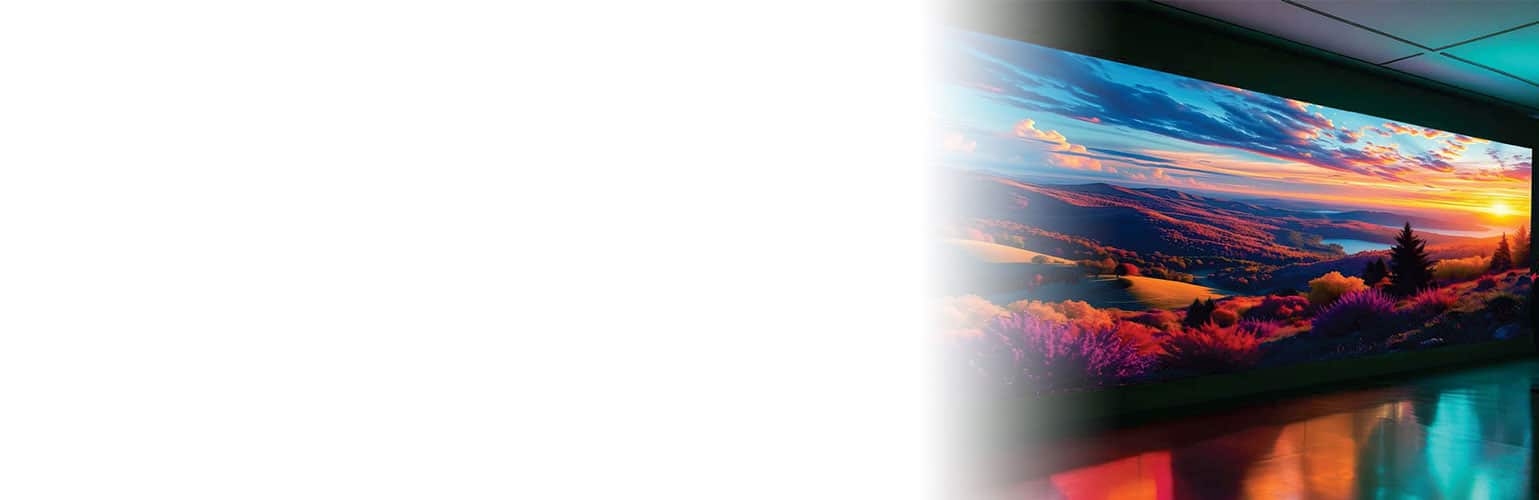

Ultimate LED Display Solution
Ultimate COB LED Display Solution
Experience cutting-edge performance with the DV Premier+, Newline’s most advanced COB LED display to date. Available in multiple pixel pitch options (0.625 mm, 0.78125 mm, 0.9375 mm, 1.25 mm, 1.56 mm, 1.875 mm) the DV Premier+ delivers flexibility for a wide range of applications.
COB Technology
High Brightness
170° Ultra-wide Viewing Angle
Superior Protection
Ultra-light and Ultra-thin
Ultra-High Contrast Ratio

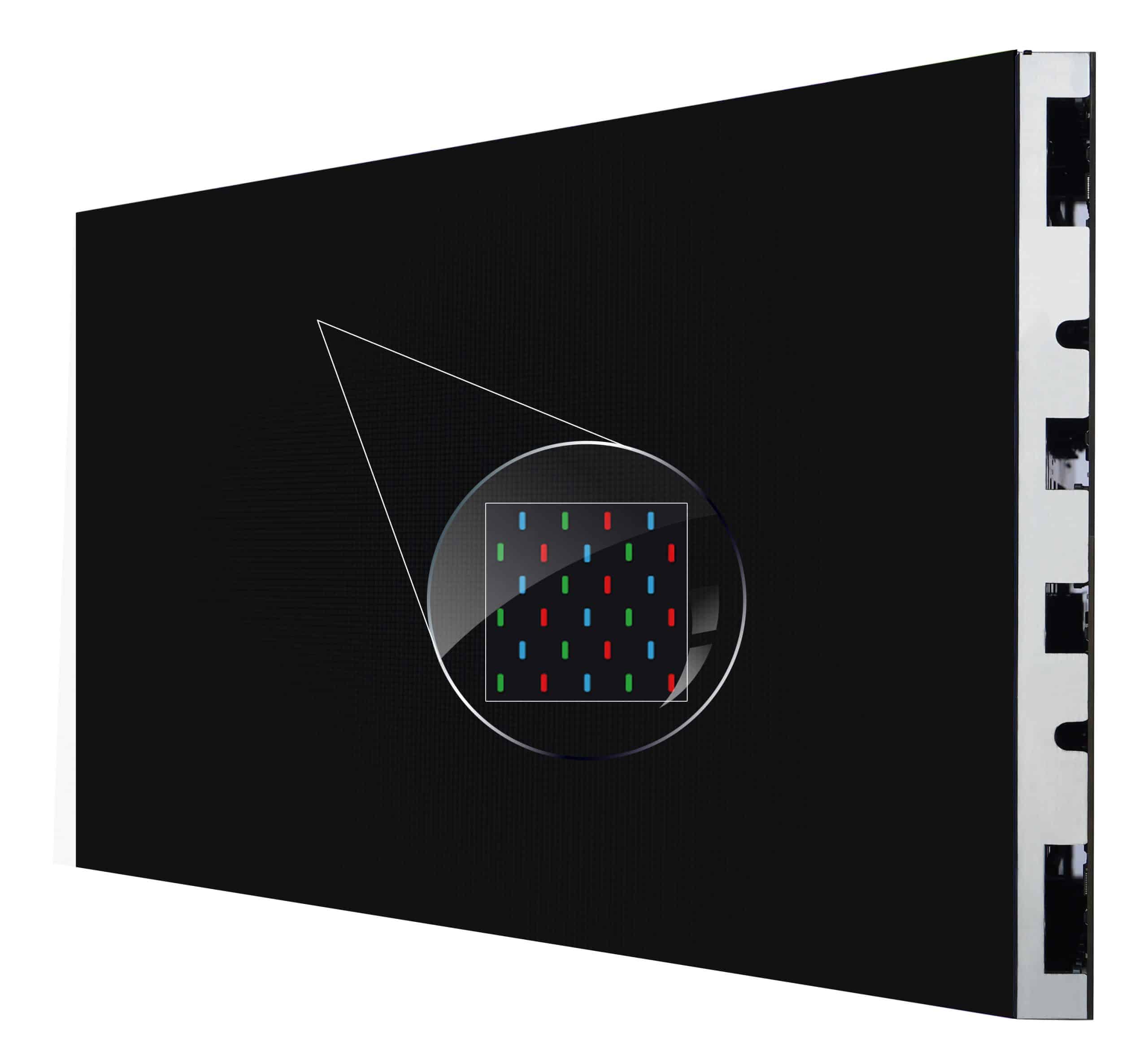

COB Technology
Chip On Board (COB) is a technology where tiny LED chips are directly mounted onto a circuit board instead of being individually packaged. This design allows for a more compact arrangement, improving brightness, durability, and heat dissipation. As a result, COB displays offer better image quality, longer lifespan, and fewer technical failures compared to traditional LED screens.

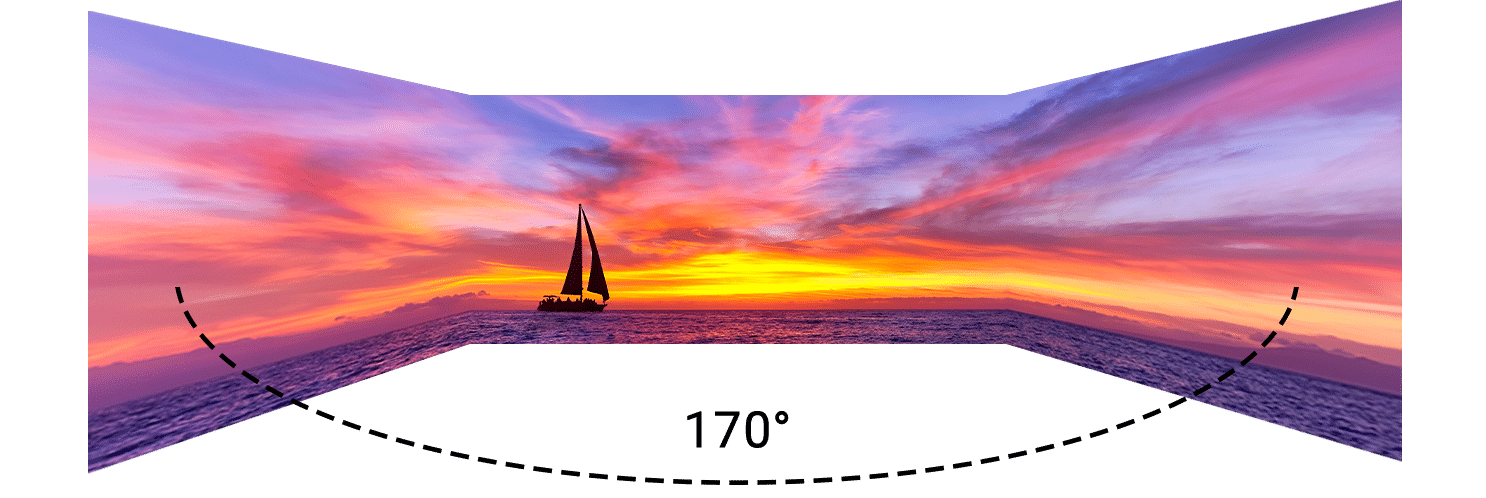

Wider Viewing Angle
The DV Premier+ features an ultra-wide 170° horizontal and vertical viewing angle, ensuring consistent image quality from virtually any position. Whether you’re viewing from the center or the side, colors remain true and details stay sharp without distortion. This wide-angle performance makes it ideal for large rooms, collaborative environments, or any space where audiences are spread across varying vantage points.
Ultra-High Contrast Ratio
With a 15,000:1 contrast ratio , the DV Premier+ delivers deep blacks and brilliant whites for a truly dynamic viewing experience. This high contrast enhances every image by revealing fine details and subtle textures that might otherwise be lost. The result is a crisp, vibrant display that brings content to life with remarkable clarity and depth.
High Brightness
The DV Premier+ delivers a standard brightness of up to 1,000 nits, ensuring vivid visuals even in well-lit environments. This high brightness level enhances visibility, making content clear and impactful whether viewed in classrooms, conference rooms, or public spaces. With consistently bright and vibrant imagery, the display ensures your message stands out in any setting.
Specifications
| Pixel Pitch | 0.625 mm | 0.78125 mm | 0.9375 mm | 1.25 mm | 1.56 mm | 1.875 mm |
| LED Type | COB | COB | COB | COB | COB | COB |
| Module Size (inches) (W x H) | 5.9 x 6.64 | 5.9 x 6.64 | 11.8 x 6.64 | 11.8 x 6.64 | 11.8 x 6.64 | 11.8 x 6.64 |
| Module Resolution (W x H) | 240 x 270 | 192 x 216 | 320 x 180 | 240 x 135 | 192 x 108 | 160 x 90 |
| Cabinet Size - Inches (W x H x D) | 23.62 x 13.29 x 1.1 | 23.62 x 13.29 x 1.1 | 23.62 x 13.29 x 1.1 | 23.62 x 13.29 x 1.1 | 23.62 x 13.29 x 1.1 | 23.62 x 13.29 x 1.1 |
| Cabinet Resolution (WxH) | 960× 540 | 768 × 432 | 640 × 360 | 480 × 270 | 384 × 216 | 320 x 180 |
| Cabinet Weight | 10.6 lbs. | 10.6 lbs. | 10.6 lbs. | 10.6 lbs. | 10.6 lbs. | 10.6 lbs. |
| Brightness (nits) | 800-1000 | 800-1000 | 800-1000 | 800-1000 | 800-1000 | 800-1000 |
| Viewing Angle | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° |
| Refresh Rate (Hz) | 3840-7680 | 3840-7680 | 3840-7680 | 3840-7680 | 3840-7680 | 3840-7680 |
| Contrast Ratio | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 |
| Frame Rate (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Gray Scale (bit) | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 |
| Input Voltage | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz |
| Max Power Consumption (W/m²) | 300-450 | 300-450 | 300-450 | 300-450 | 300-450 | 300-450 |
| Average Power Consumption (W/m²) | 100-150 | 100-150 | 100-150 | 100-150 | 100-150 | 100-150 |
